Syringe Systems

Integrated Tip Cap (ITC): Closure Systems for EZ-fill® Pre-fillable Syringes

Syringes_ITC_Nest_Detail_close-up

Our Integrated Tip Cap has been developed to be the ideal match for EZ-fill® luer lock cone syringes with its twist-off closure system.

It comprises of a rubber component inserted in a rigid plastic cap, screwed onto a luer lock adaptor and then pre-assembled on the EZ-fill® syringe.

ITC systems are manufactured in our plants, with automatic control and assembly in an ISO7 clean room.

Key Benefits of ITC Syringes

Benefits

  • 133A_ITC intuitive_UX

    Intuitive user experience

  • 37_Syringe Needle

    Easy to connect with hypodermic and safety needles

  • 70_Less Time to Market

    Fast Time-to-Market: based on established design for rapid implementation by pharma companies

Preferred market choice

  • 348_Water_diluent

    Diluents

  • 199_Chemical molecule

    Vaccines

  • 133C_ITC syringe_add-ons

    Hyaluronic acid

  • 236_Monoclonal_Antibodies

    Biotech drugs

  • 199_Chemical molecule

    Intravenous (IV) drugs

Integrated capabilities

SG_ITC_infographic_integrated_capabilities
133B_ITC+Syringe

1. Glass primary packaging
ITC assembly
Sterilization
Validation of CSS

66_Surface Characterization

2. Testing method definition for ITC inspection
Silicone layer testing (gliding, distribution…)
ITC closure performance verification
Method transfer to operation

196A_Injection_Molding

3. Molding
RC holding
LLA holding
Rubber cap integration
Assembly of ITC RTS

57_Packaging & Assembling

4. Automatic ITC assembly line
Inspection control by sensors and cameras
IPC

ITC_EIC_-_syringe_and_add_on

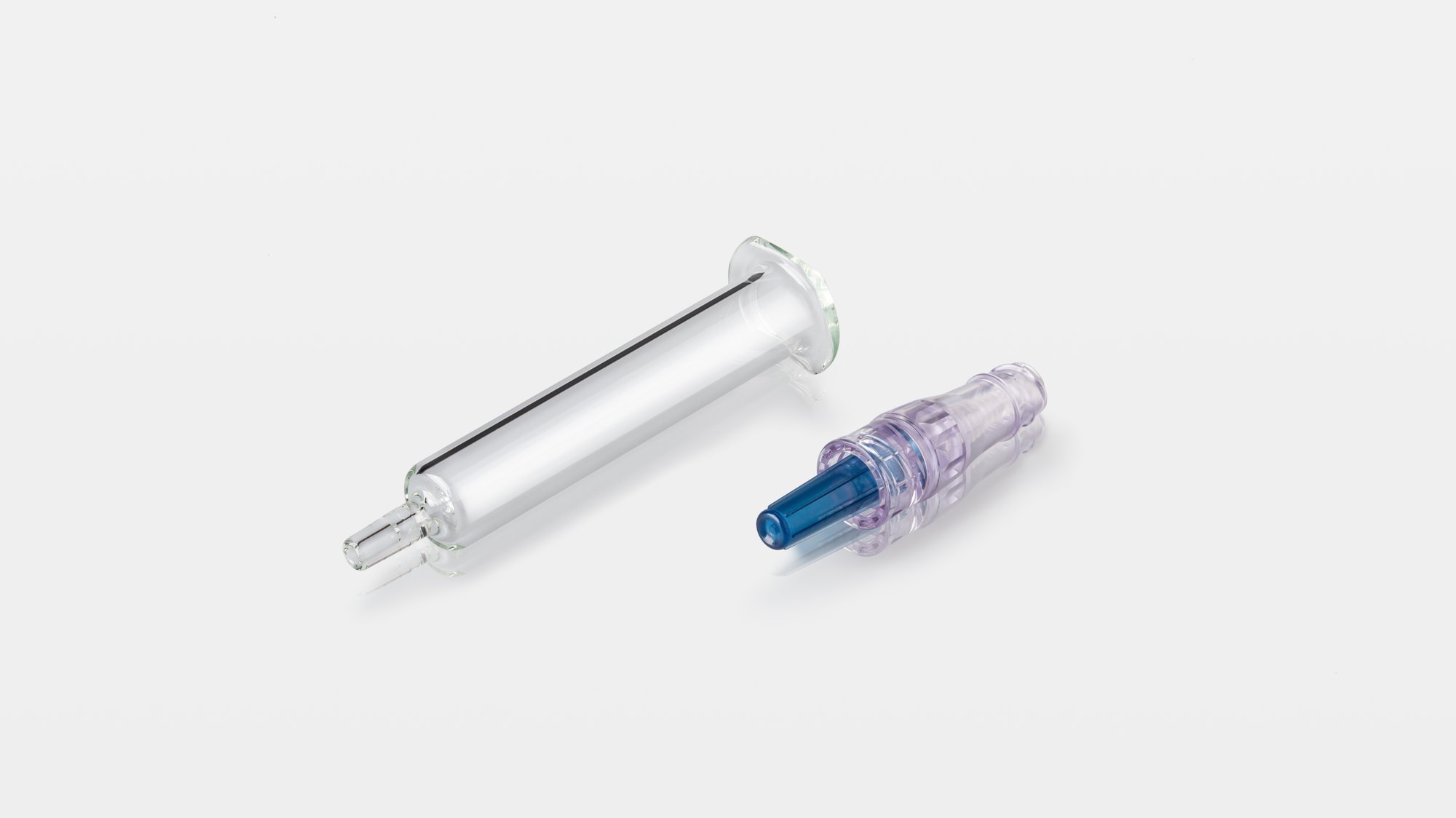

ITC Syringe with an Enlarged Inner Cone (EIC): Enhancing Compatibility for Intravenous (IV) Drug Delivery

The ITC syringe with an Enlarged Inner Cone (EIC) is an evolution of Stevanato Group’s Integrated Tip Cap platform, developed to enhance compatibility with commonly used intravenous (IV) drug delivery systems.

By redesigning the inner cone geometry, the EIC option supports a more reliable connection with selected needleless IV connectors, while maintaining the performance, robustness, and usability of the ITC closure system. The design has been verified in line with ISO 11040-4 for prefilled syringes and ISO 80369-7 for small-bore connectors. The syringe has been tested for fluid and air leakage, axial load resistance, unscrewing resistance, and stress cracking. 

The EIC syringe is validated in 1.25mL and 2.25mL formats using existing ITC tip cap formulations. Additional formats can be developed upon request.

Available formats

ITC ITC (EIC)
Fina 1mL long -
- 1mL -
- 1.25mL
- 1.5mL -
- 2.25mL
- 3mL -
- 5mL -
- 5mL bypass -
Nexa® 1mL long -
- 1mL -
- 2.25mL -
Alba® 0.5mL -
- 1mL long -
- 2.25mL -
Available
Upcoming
