Pen Injector Assembly Line

A flexible mid-high speed pen injector line assembling different formats and integrating extensive in-process controls.

Our journey into the pen injector industry began in the mid-1990s and over the years we have gained a thorough understanding of the market. Recently Merck Serono approached us to design and manufacture a mid-high speed line assembly and packaging line for their site in Bari, Italy. A high level of automation and precise inline controls were required to assemble and package their fertility pen according to their standards.

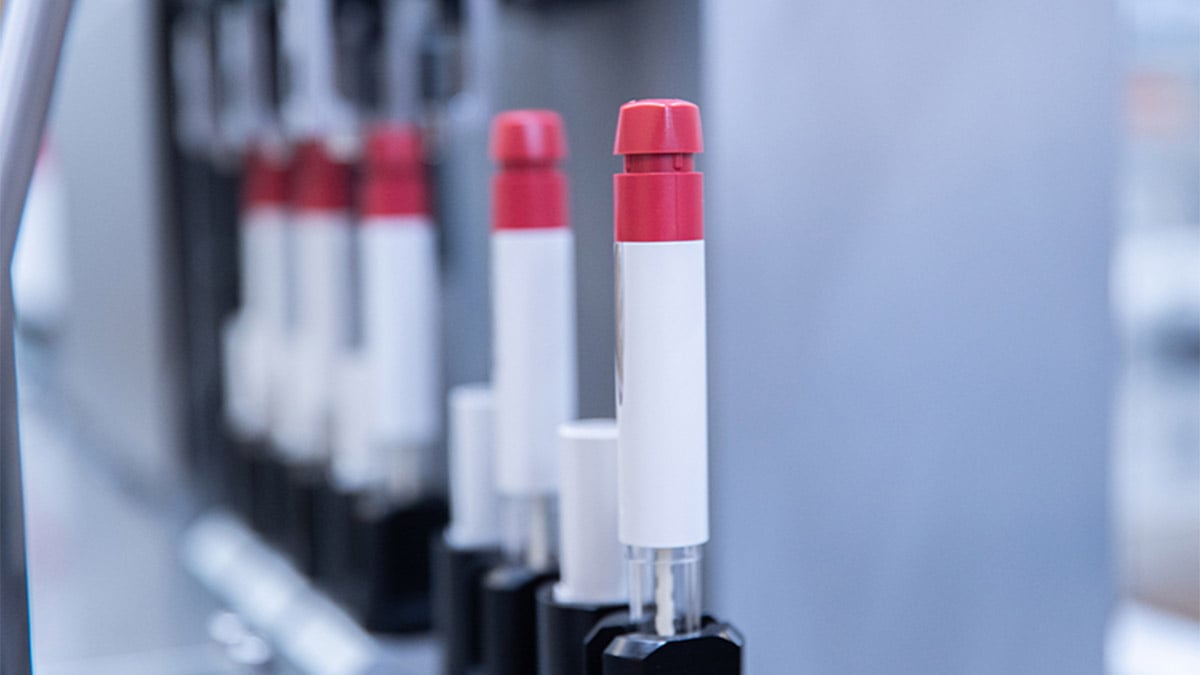

The system allows for multiple programs to be run sequentially on the same line, facilitating shorter lead times to assemble new sets of components with different features. The equipment is designed for an overall capacity of 70 devices per minute and all products are inspected within infeed modules before entering the assembly line. The line performs inspections using vision technology and sensors. Rejects are handled automatically and monitored throuout the system. Pens are labeled and placed in trays for the final production phase.
