Visual Inspection

Pharma Semi-Automatic Inspection Systems

PWL Series: a smart assistant for visual inspection activities

The PWL Series of pharma semi-automatic inspection machines is designed to simply and effectively overcome problems associated with the manual visual inspection of vials, cartridges, syringes, and ampoules. Operator training is very simple, and operations are performed under optimized conditions of lighting, safe handling, and comfort.

By combining a compact, ergonomic design with advanced lighting systems, the PWL series creates an optimized workspace where operators can process up to 2,500 pcs/hour under controlled lighting conditions for an optimal inspection performance. This smart integration of technology ensures maximum visibility and reliable defect detection, seamlessly bridging the gap between manual solutions like our Bench Vision Unit and the high-speed performance of our automatic visual inspection systems.

Model overview and specifications

To perfectly match your primary packaging needs, the PWL Series is available in two configurations.

PWL PWL SY
Containers Vials, ampoules, cartridges, infusion bottles Syringes
Inspected Products injectable liquid, powder, lyophilized, freeze-dried products injectable liquid, powder, lyophilized, freeze-dried products
Speed 4.000 (suggested max output: 2.500pcs/h) 4.000 (suggested max output: 2.500pcs/h)

Key features of the PWL inspection series

  • 80_compact-footprint-2

    Compact footprint

  • 309_Infinite

    Continuous motion handling

  • 265A_Linear_Camera

    Multi-directional lighting

  • 310_Filter_for_Lens

    Customizable polarized filters

  • 26_Minimizing Risk False Reject

    Categorized defect sorting

  • 164_ Product change notification

    Rapid format changeovers

  • 25_Regulatory Expertise

    Regulatory compliant (21CFR11, GMP)

Operator_on_PWL_SY_machine

Technical highlights and design advantages

Every detail of the PWL Series is engineered to maximize operator comfort and inspection accuracy. We combine a highly ergonomic inspection place with intuitive controls to create an optimal working environment:

  • Flexible layouts: available in single or dual-cabin (back-to-back) configurations to suit your floorplan
  • Ergonomic posture: features a standard working height of 900 ± 25 mm and adjustable object inclination (20°– 30°) for comfortable, prolonged use
  • Reject systems: configurable with either manual or automatic rejection mechanisms.
  • Adjustable illumination: fully adjustable LED light sources
  • Tyndall effect: a specialized Tyndall light source designed to make reflecting particles highly visible and easy to detect
  • 360° visibility: equipped with a high magnifying lens and adjustable mirrors positioned above and below the transport lane
  • User-Friendly HMI: a 17” color touchscreen monitor with an external keyboard provides seamless and easy control over all machine operations
PWL_SY_machine_detail Operator_working_on_PWL_SY_semiautomatic_inspection_machine

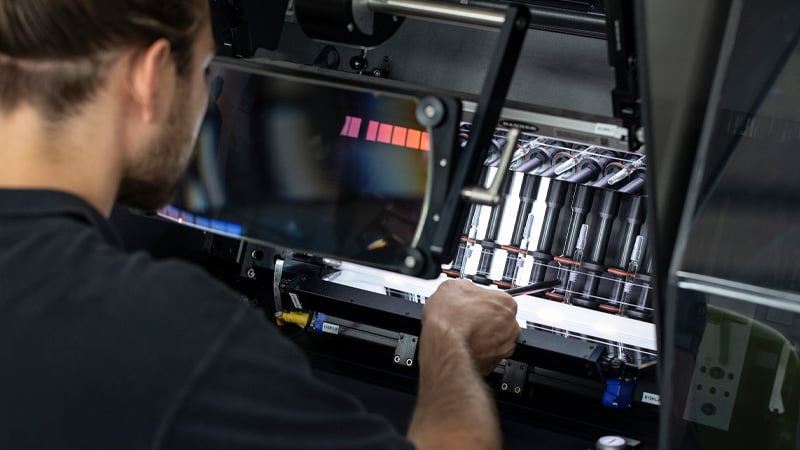

Specialized configuration for syringes (PWL SY)

Inspecting pre-filled syringes requires precise handling to ensure uncompromised quality and patient safety. The PWL SY model is specifically tailored to address these unique packaging challenges:

  • Needle-up orientation: syringes are deliberately inspected with the needle pointing up. This orientation provides a critical advantage to avoid hidden particles from remaining undetected under the cap.
  • Seamless in-line automation: to streamline your production flow, an automatic denester is available to load the syringes directly on the infeed path. Additionally, an automatic renester in-line connection can be integrated to effortlessly connect the visual inspection phase with your broader manufacturing line.

Discover the full technical specifications

Want to dive deeper into the capabilities of the PWL Series? Download our comprehensive brochure to explore detailed technical data, layout configurations, and output specifics for your pharmaceutical inspection needs.
